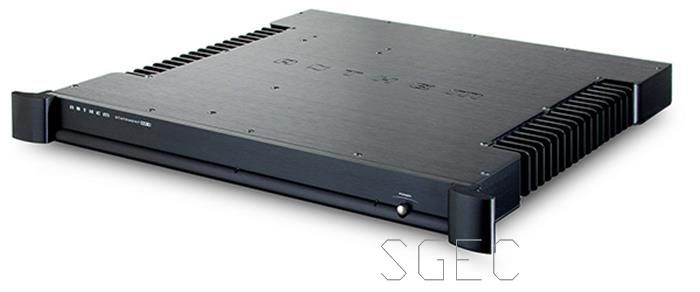

Anthem M1單聲道後級
加拿大的Anthem在多聲道領域具有技術領先地位，在擴大機的設計上，也有獨到一面。很少有擴大機能夠像他們一樣，端出這樣驚人的性能規格。
怎麼個驚人法？Anthem M1單聲道後級，在對應8歐姆負載下，可以輸出1000W的功率，當負載阻抗降到4歐姆，輸出功率就倍增到2000W。
而且，在高輸出功率下，還能維持低失真，這就更不容易。
根據原廠公布的數據，M1在10W輸出以內，失真率僅有0.01%，這還不稀奇，驚人的在後頭，100W輸出下，總諧波失真率還小於0.03%，就算是1000W全功率輸出，失真率還是維持在0.06%以下，這的確是世間罕見。
器材規格
型式：單聲道後級
頻率響應：20Hz~20KHz（+/- 0.1dB）
輸出功率：1000W（8Ω）、2000W（4Ω）、2400W（3Ω）
總諧波失真（@1 kHz, 8 Ω）：0.01%（1W、10W）；<0.03（100W）；<0.06（1000W）
訊噪比：113dB
電壓增益：29dB
阻尼因數：800～1400（取決於頻率）
尺寸：483 x 476 x 57 mm (W x D x H)
重量：9KG
M1 Specifications |
|
 |
|
| Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N | |
|
|
| 8 Ω | 1000 W |
|
|
| 4 Ω | 2200 W |
|
|
| 3 Ω | 2400 W |
|
|
| 2 Ω | >2000 W depending on line voltage regulation |
|
|
| With 120V AC supply the amplifier’s maximum output into impedances 4 Ω and lower, as well as its maximum duration, vary depending on line voltage regulation. | |
|
|
|
|
| Frequency Response 20 Hz to 20 kHz | |
|
|
| Open circuit | +/- 0.1 dB |
|
|
| 8 Ω | +/- 0.1 dB |
|
|
| 4 Ω | +/- 0.1 dB |
|
|
| 2 Ω | +/- 0.2 dB |
|
|
|
|
| Power Bandwidth 1000 W at 8 Ω | 5 Hz to 45 kHz |
|
|
| THD+N at 1 kHz, 8 Ω | |
|
|
| 1 W | 0.01 % |
|
|
| 10 W | 0.01 % |
|
|
| 100 W | <0.03 % |
|
|
| 1000 W | <0.06 % |
|
|
|
|
| IMD 19 kHz + 20 kHz, CCIF | 0.003% |
|
|
| S/N Ratio ref. 1000 W, IEC-A | 113 dB |
|
|
| Voltage Gain | 29 dB |
|
|
| Input Sensitivity | 100 mV for 1 W output, 3.2 V for 1000 W output (8 Ω) |
|
|
| Input Impedance | 10 kΩ (RCA), 20 kΩ (XLR) |
|
|
| Damping Factor | 800 to 1400 depending on frequency |
|
|
| XLR Configuration | Pin 1: Ground, Pin 2: Positive, Pin 3: Negative |
|
|
|
|
| POWER REQUIREMENTS | <1 W |
|
|
| Consumption in a typical music/theater installation | <2 W |
|
|
| standby mode, 120V mains | 33 W |
|
|
| standby mode, 240V mains | 300 W |
|
|
| operate mode, idle | |
|
|
| typical operation | |
|
|
| Where mains voltage is 120V, one dedicated 15A circuit per amplifier is recommended depending on speaker. A 20A circuit is adequate for two amplifiers playing music where speaker impedance is 8 Ω. This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz. | |
|
|
|
|
| DIMENSIONS | |
|
|
| Height with feet | 2 1/4 inches (5.7 cm) |
|
|
| Height without feet | 1 rack unit |
| Width standard handles | 19 1/4 inches (49 cm) |
|
|
| Width rackmount handles | 19 inches (48.3 cm) |
|
|
| Depth | 18 3/4 inches (47.6 cm) |
|
|
| Weight (unpacked) | 20 lb (9 kg) |
